International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Henan Hongtai Kiln Refractory Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

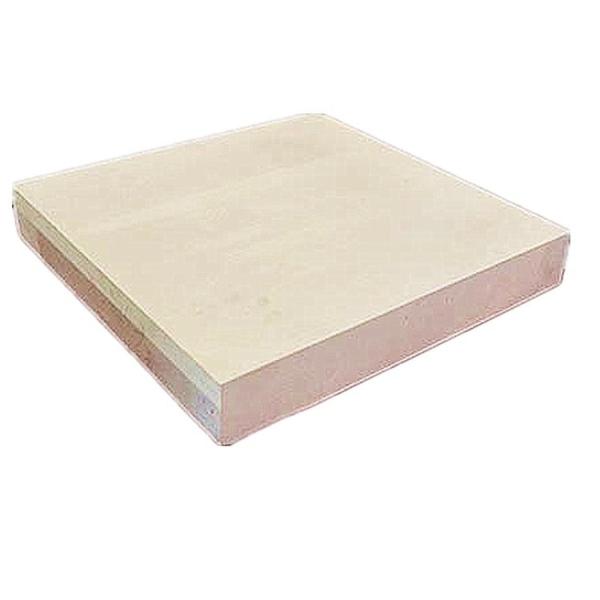

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Place of Origin : Henan, China

Shape : Brick

Material : zirconium

SiO2 Content (%) : 13%-16%

Al2O3 Content (%) : Leavings

MgO Content (%) : international standard

CaO Content (%) : international standard

Refractoriness (Degree) : 1770°< Refractoriness< 2000°

Model Number : Hongtai

Brand Name : HT

Product name : Fused Cast High Zirconia Brick

Application : Glass industry furnace

Raw material : alumina,zircon,

Color : White

BULK DENSITY : 5.1-5.3

Certificate : ISO9001

Type : manufacture

Size : Customers' Requirement

Usage : Furnace Liner

Zirconia content : 89%

Packaging Details : plywood cases for export, or other packages required by customer.

Supply Ability : 3000 Ton/Tons per Month AZS--33/36/41 Fused cast zirconia-corundum refractory bricks

Price : $1,500.00 - $2,000.00/tons

Contact Now

Factory price Fused Cast

zircon Brick for glass furnace with top performance

Product Description

Description of Zirconia Brick

The series of HT-Zirconia Brick is fused cast high zirconia refractories which are specially designed refractory for glass furnace application. Zirconia Brick is made of artificial synthesis high purity raw materials through special casting process. The crystalline texture consists of baddeleyite and with the characteristics of excellent high temperature & corrosion resistance, low blister and stoning potential. These advantages can prevent liquid glass from pollution effectively.

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Features of Zirconia Brick

--excellent high temperature & corrosion resistance
--low blister and stoning potential
--high purity raw materials
--wide application in glass industry,ceramic fiber industry and construction field,etc.

Application field of Zirconia Brick

1.Zirconia Brick has wide application in a wide range of super high temperature furnaces and kilns in military industry,science research, high melting point Metallurgical, laser crystal and electronic,etc.


2.For high quality and special glass furnaces such as TV glass, Borosilicate glass, Alumina silicate glass, Halogen lighting glass, Opal glass and Fiber glass.


3.Zirconia Brick mainly consists of HT-Z88-WS and HT-Z95-WS, and are used in sidewall, throat cover, throat support, electrode brick, dam brick parts.

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Specifications

Specification of Zirconia Brick

Item TY-Z88-WS TY-Z95-WS
Chemical Composition % ZrO2 89.00 93.60
SiO2 9.00 5.30
Al2O3 1.00 1.00
Na2O 0.05 0.51
Others 1.60 1.0
Mineral Composition % Baddeleyite Typical 89 94
Glass Phase 11 6
Physical Properties Cold Crushing Strength (MPa) 400 400
Bulk Density (g/cm³) Typical 5.10 5.30
Liner Thermal Expansion (%) 1000℃ 0.65 0.70
1500℃ 0.10 0.30

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Packaging & Shipping

Packing of Zirconia Brick

1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Shipping of Zirconia Brick

1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Workshop corner

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace

Customer visit

International Standard MgO Content Fused Cast Zircon Brick for Glass Industry Furnace
