Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish

$China Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish factory$

Place of Origin : Henan, China

Shape : PIPE

Material : Zirconia

SiO2 Content (%) : 0.2

Al2O3 Content (%) : 0.4

MgO Content (%) : 2.9

CaO Content (%) : little

Refractoriness (Degree) : Common (1580°< Refractoriness< 1770°)

CrO Content (%) : little

SiC Content (%) : little

Model Number : Zirconia insert

Brand Name : Hongtai

Product name : Zirconia nozzle

Application : core or insert for ladle nozzle and tundish

Color : Yellow

ZrO2 : 95min

Raw material : Corundum

Name : Zirconia Nozzle Core/Zirconia Metering Nozzle

Usage : Steel Making ladle or tundish

Bulk Density(g/cm3) : 5.45-5.6g/cm3

Cold Crush Strength : 50MPa

Apparent porosity/% : 9

Packaging Details : Packaging of zirconium sizing nozzle:
1.inner bags:20pc nozzle
2.outside bags: 8 inner bags in big outside bags

Supply Ability : 3000 Ton/Tons per Month

MOQ : 100 pieces

Price : $1.50 - $6.00/pieces

Contact Now

Product Description

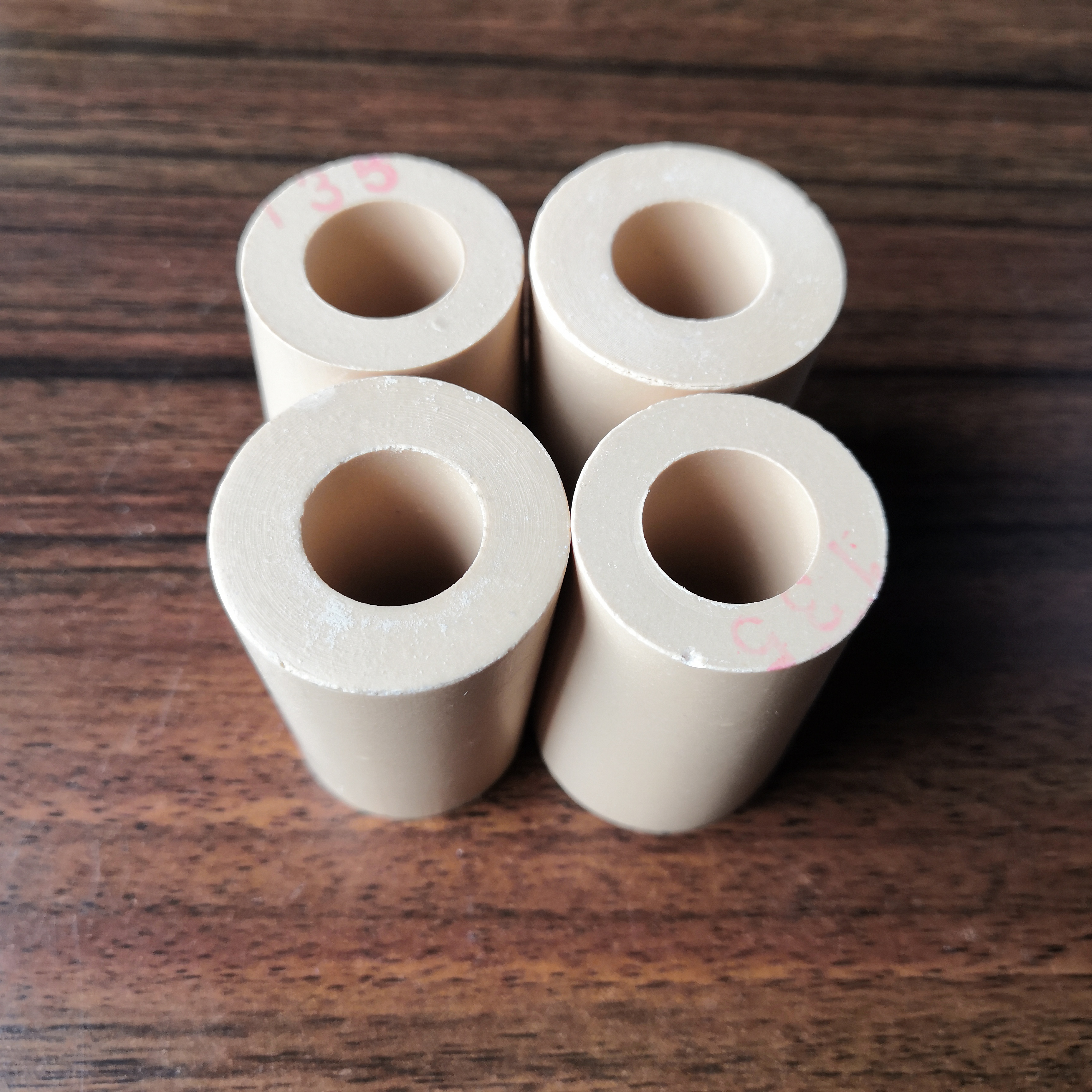

Tundish Nozzle Zirconia nozzle for ladle and tundish

Zirconia nozzle zirconia Insert for casting ladle part in steel factory are made of zirconia and baddeleyite, formed by high tension and baked in high temperature when stablized by special technology. Different sizes and types of zirconia metering nozzles are designed and made according to users' different steel-making conditions and requirements.

Product Name	Zirconia Nozzle / Zirconia Insert
Brand	Hongtai
Color	Light Yellow
Material	Zirconia
Size	Customization

Brand			HT-1	HT-2	HT-3	HT-4	HT-5	HT-6	HT-7	HT-8
Chemical Composition(%)≥	ZrO2+HfO2	70	75	80	85	90	93	93	95
Bulk Density(g/cm3)≥			3.8	4	4.2	4.4	4.6	4.9	5.1	5.3
Apparent porosity(%)≤			22	22	20	20	20	15	13	10
Cold Crushing Strength(Mpa)≥			80	80	80	80	80	80	90	100
Refractoriness(℃）≥			1790	1790	1790	1790	1790	1790	1790	1790
Thermal shock resistance(times)（1100℃ )			5	5	5	5	5	5	5	5

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Detailed Images

High Purity & Strong Density

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Good Thermal Shock Stability

Abrasion & Erosion Resistance

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Application

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Application of Zirconia Nozzle

Zirconia nozzle almostly used in the converter, ladle, tundish with continuous casting technology and Medium Frequency Furnace Electromagnetic induction
heating smelting process, the properties of full ZrO2 material ring, slide gate plate, nozzle etc. high purity ZrO2 inserts
products have reached the leading level in the domestic same industry quality. The quality and technology of the products we are
manufacturing now have been in the lead of relative industry domestically, it have successfully instead of Germany, UK, etc Europe.Origin products in India, Russia etc. Market.

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Certificate

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Packing&Shipping

Packaging for zirconia nozzle:
1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.

Shipping for zirconia nozzle:

1.The sample will be send by International expresses FEDEX/DHL/UPS/TNT.
2.The goods are transport by shipping.

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Company Introduction

Tundish Nozzle Zirconia nozzle for ladle and tundish

Henan Hongtai Kiln Refractory Co., Ltd. is established in 2002, located in Xinmi City, 40kilometers southwest of Zhengzhou City in Henan Province, close to Jingguang, Longhai railway lines, with road transport facilities. Rich resources of Refractory materials,adequate and qualified fuel in this area, provide unique conditions for refractory production, shipping and refractory industry development.
Main products include different kinds of refractory brick:Fire Clay Brick, High Alumina Brick, Light Weight Insulating Brick,Corundum Brick,Mullite Brick,AZS Bricks, Refractory Balls ,Refractory concrete,refractory castable,Acid resistant brick etc.They are widely used in Iron and steel, Nonferrous metals, Building materials(Cement,Glass,Ceramic), Petrochemical, Energy & Incineration etc industries. Our products have been exported to India,Turkey,Vietnam,Malaysia and Kazakhstan etc.

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

Our Services & Strength

1. ISO 9001 certified Chinese supplier
2. Provide product search, offer, quality control, warehousing, international logistics, etc one-stop service
3. Offer customization product and all-around product application programs according to customers' requirement
4. Supply FREE sample and accept small orders
5. Alternative Packages
6. Operated by in professional teams, offer quality after-sales service and technical support.

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$

FAQ

Tundish Nozzle Zirconia nozzle for ladle and tundish

1.What's your payment terms?
Various payment will be supported
2.What's your delivery time?
Usually within 15-30 days after receive the deposit.
3.How about the packing?
25 kg/bag,outer woven bags with inner plastic lining.
4.What documents you provide?
Usually, we provide Commercial Invoice, Packing List, Bill of lading, COA , TDS. etc.If your markets have any special
requirements, let us know.
5.How about the validity of the products?
According to the products you ordered.
6.What is loading port?
Usually isTianjin, Shanghai or Qingdao.

$Henan Refractory Zircon Insert Zircon Nozzle for Tundish Nozzle Used in Ladle and Tundish$
