International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

Henan Hongtai Kiln Refractory Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

Place of Origin : Henan, China

Shape : Brick

Material : Silicon Mullite

SiO2 Content (%) : 15-20

Al2O3 Content (%) : Min 65

MgO Content (%) : International Standard

CaO Content (%) : International Standard

Refractoriness (Degree) : 1770°< Refractoriness< 2000°

CrO Content (%) : International Standard

SiC Content (%) : 0-20

Model Number : HT-GM

Brand Name : Hongtai

Processing Service : Welding, Cutting, Moulding

Product name : silicon carbide mullite brick

Color : red, gray

Application : Cement Rotary Kiln

Size : Customized Size

Raw material : Silica Carbide Powder, mullite

Usage : Furnace Liner of Cement Rotary Kiln

Bulk Density(g/cm3) : 2.65

Name : silicon mullite brick

Certificate : ISO9001-2008

Apparent porosity/% : <20

Packaging Details : 1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.

Supply Ability : 3000 Ton/Tons per Month

MOQ : 2 tons

Price : $400.00 - $700.00/tons

Contact Now

Product Description

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

China refractory manufacturer silicon mullite red 1650 1680 MULLITE ANDALUSITE SILICON CARBIDE BRICKS for cement kiln

Silicon mullite Brick azm 1650 is a kind of fired brick with mullite (3al2o3.2sio2) and silicon carbide (SIC) as the main minerals. It has the advantages of high temperature resistance of mullite, wear resistance, corrosion resistance and good thermal conductivity of silicon carbide.

Performance advantages of MULLITE ANDALUSITE SILICON CARBIDE BRICKS for cement kiln for cement kiln transition zone:


1. High load softness and excellent high temperature resistance (the actual test value of the load softening temperature is stable above 1680 ℃, which has been greatly improved on the basis of silica-molecular bricks, and is comparable to magnesia-aluminum spinel bricks.)


2. High strength, wear resistance, not easy to spall and corrode (the actual test value of its strength is stable above 160MPa, which is more than 3 times the strength of spinel bricks. The strength is increased, and it is not easy to be damaged during handling and can be fully improved. Its wear resistance, so it is very suitable for use at 2-3 meters from the kiln mouth).


3. Low thermal conductivity and good thermal insulation effect (the performance and use of magnesia-aluminum spinel bricks, the thermal conductivity of silicon-moulded bricks is too large, resulting in higher temperatures in simplified form; silica mullite 1650 bricks are still high-aluminum-silicon carbide The characteristics of the product and the material itself determine its lower thermal conductivity. In the same period, the temperature can be reduced by more than 50℃)


4. Strong flexibility and excellent thermal shock resistance (its good thermal shock stability can fully adapt to the environmental requirements of frequent fluctuations in the temperature of the transition zone)


5. The density is moderate and the simplified load is reduced (the volume density of the silicon-molded red brick is more than 8% lower than that of the magnesia-aluminum spinel brick, which leads to a reduction of the simplified load of the silicon-molded red brick by more than 8% within the unit length of the same kiln type)

6. The price of silica mullite 1650 bricks is also preferential to that of magnesia alumina spinel brick, so silico red is used in the transition zone of rotary kiln, which is indeed economical and applicable.

Description of use

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

China refractory manufacturer silicon mullite red 1650 1680 MULLITE ANDALUSITE SILICON CARBIDE BRICKS for cement kiln

The temperature of the brick surface in the transition zone of cement rotary kiln is about 1400 ℃. The temperature of the preheating zone and cooling zone is lower than that of the transition zone. That is, the burning zone is protected by the kiln skin, and the temperature of the brick surface is not high.

The starting temperature of brick softening under load is above 1500 ℃, especially the product structure is dense, composed of high-hardness minerals, corundum, silicon carbide, mullite, with particularly good wear resistance, Silica mullite Brick azm 1650 is an ideal type of brick for the transition zone.

Compressive strength and load softening temperature are obviously higher than that of anti-stripping high alumina bricks. Its thermal shock stability, corrosion resistance, wear resistance, and thermal conductivity are not high, which are required by the process characteristics of the post transition zone. The life span is 1.5-2 times that of the anti-stripping brick. Good wear resistance is more suitable for cooling belts. The service life can reach more than two years, which is 3-5 times longer than the service life of high alumina bricks. Now, according to the use conditions of different sections of the rotary kiln, different grades of silica bricks with different properties have been applied.

In addition, the thermal conductivity of Silica mullite Brick azm 1650 s is lower than that of alkaline products, so the thermal insulation effect of silicon-modified bricks is better. Silica mullite Brick azm 1650 s are used in the secondary firing zone, transition zone, preheating zone, kiln tail, tertiary air duct, calciner, etc. of large rotary kilns. Compared with alkaline bricks, the surface temperature of the cylinder body is lowered by more than 100 ℃.

Technology

China refractory manufacturer silicon mullite red 1650 1680 MULLITE ANDALUSITE SILICON CARBIDE BRICKS for cement kiln

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

Items Technical Data
Grade Silica-mullite brick Silica-mullite
andalusite brick
AZM-1650 AZM-1680 RT-SMA-1650T
Al2O3 % 63 65 68
SiO2 + SiC % 35 30 30
Apparent Porosity % 20 22 17
Bulk Density (g/cm3) 2.55 2.65 2.7
Cold Crushing Strength (Mpa) 90 85 90
Refractoriness under Load 0.2Mpa (℃) 1600 1630 1680
Thermal shock resistance (1100℃ water quenching,cycle) 10 12 15
Thermal conductivity coefficient(1000℃)W/m.k 2.5 2.3 1.7
Packaging & Shipping

China refractory manufacturer silicon mullite red 1650 1680 MULLITE ANDALUSITE SILICON CARBIDE BRICKS for cement kiln

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

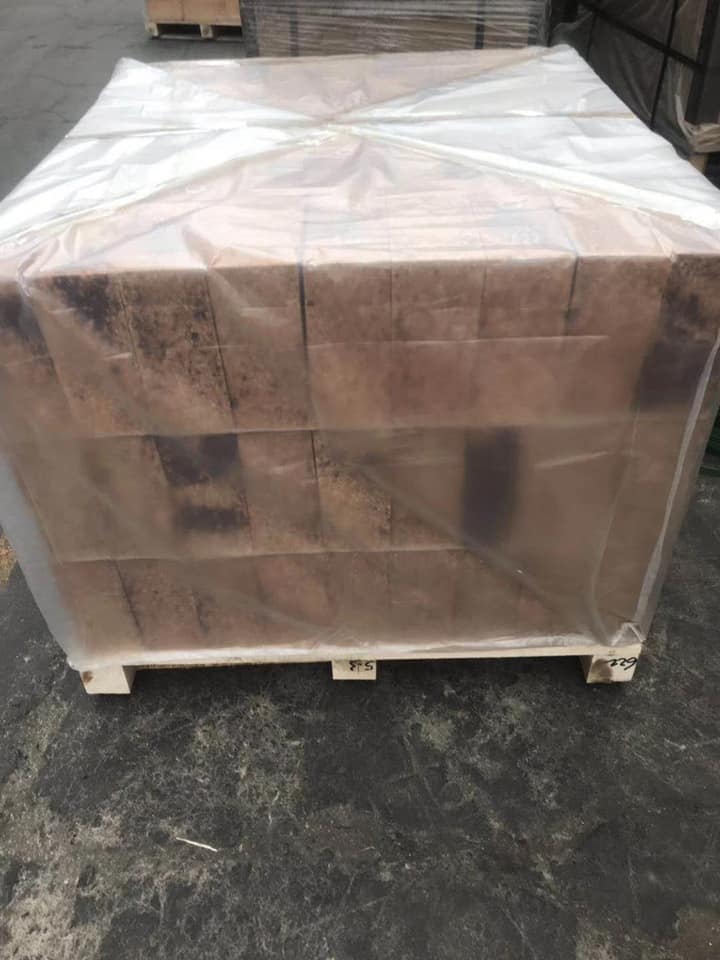

Packaging of silicon mullite bricks

1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.

Shipping of silica mullite bricks

1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.

Workshop corner

China refractory manufacturer silicon mullite red 1650 1680 MULLITE ANDALUSITE SILICON CARBIDE BRICKS for cement kiln

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement KilnInternational Standard CaO Content Silicon Mullite Andalusite Brick for Cement KilnInternational Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln

International Standard CaO Content Silicon Mullite Andalusite Brick for Cement Kiln
